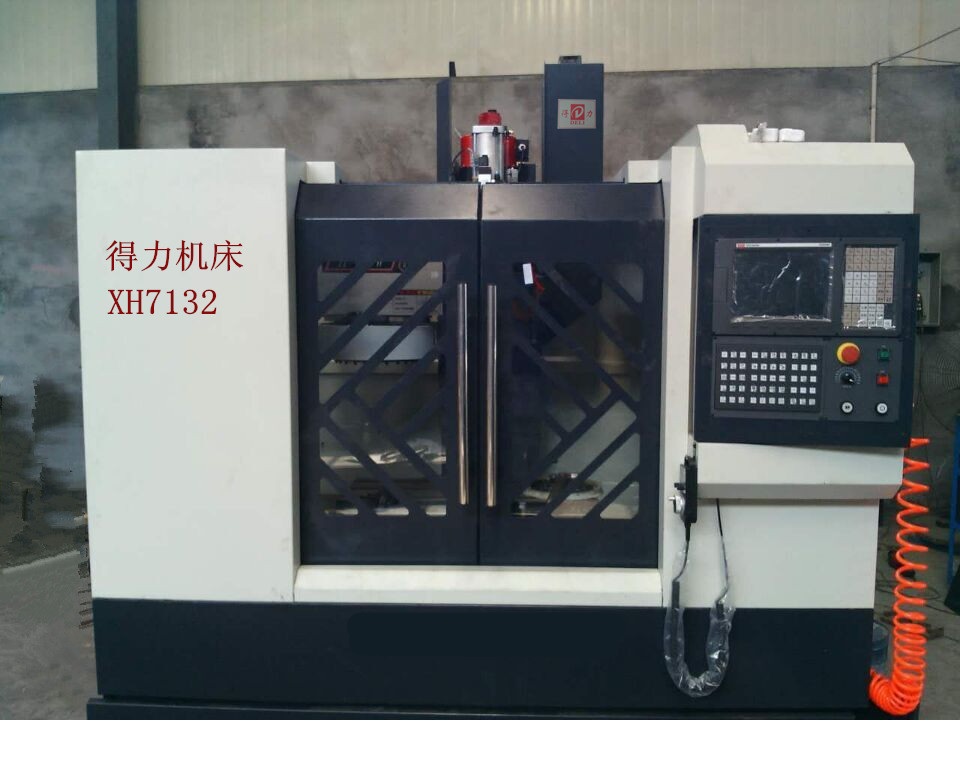

XH7132 Machining Center

Technical Parameter

Guide form Ultra Wide Silver Rail
Working mesa size mm 800×320
About trip (X) (Y) before and after the mm (Z) 550×330×450
Spindle center to guide the post mm distance 370
Mm spindle end to the work surface distance 100 -500
Workbench T slot (quantity - size - spacing) 3×14×100
The spindle taper hole (model/install size) mm BT40/Ф120
Spindle speed RPM 8000
3 mm ball screw shaft specifications 3206
Mm feed motor connection way Direct coupler joint
The parameters of the main motor and feed motor (KW, X/NM, Y/NM, Z/NM) 5.5 6 6 7.7
The workbench bearing kg 300kg
Light machine net kg 2.2T
