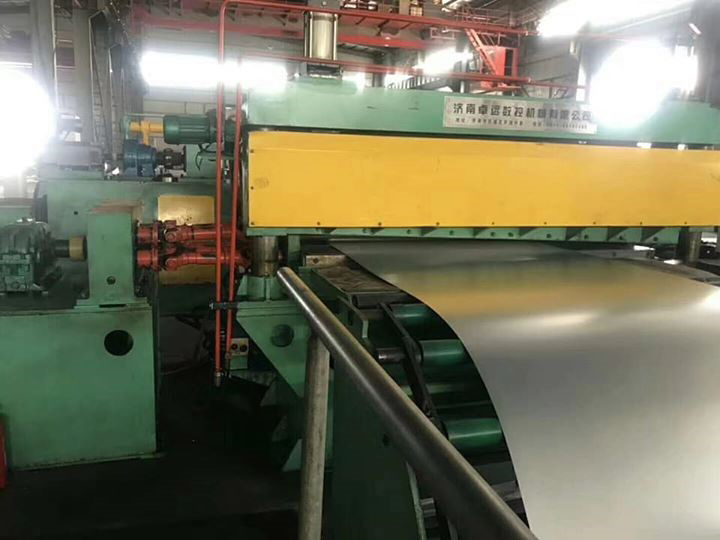

Slitting machine is also slitting line, it can be used for metal coil after coiling uncoiling, slitting, rolled into the desired width. It is applicable to the processing of cold rolled and hot rolled steel, silicon steel, tinplate, stainless steel and the surface coating of metal materials.
- Use: It is suitable for metal strip longitudinal shearing work,and roll the cut strip into rolls.
- Advantages: Convenient operation, high cutting quatity, material utilization rate is high, stepless speed regulation of cutting speed.
- Structure: By the book (volume), maretial positioning, strip slitting and coiling (rolling) etc…
- Applicable materials: Tin, silicon steel, aluminum, copper, stainless steel plate, galvanized plate etc…
- Applicable industry: Transformer, moto, household appliaces, automobiles, building materials, packaging industry etc…
Technical Specification
| Model |
Plate thickness (mm) |
Plate width (mm) |
Number of slitting lines |
Slitting speed (m/min) |
Open weight (ton) |
| ESL-0.5 x 1300 |
0.15-0.5 |
500-1300 |
24 |
50-150 |
7 |
| ESL-2 x 1300 |
0.3-2 |
500-1300 |
12-30 |
50-180 |
7/15 |
| ESL-2 x 1600 |
0.3-2 |
500-1600 |
12-30 |
50-180 |
7/15 |
| ESL-3 x 1600 |
0.3-3 |
500-1600 |
8-30 |
50-180 |
15 |
| ESL-3 x 1800 |
0.3-3 |
900-1800 |
8-30 |
50-180 |
20 |
| ESL-4 x 1600 |
1-4 |
900-1600 |
6-30 |
50-120 |
20 |
| ESL-6 x 1600 |
1-6 |
900-1600 |
6-30 |
30-80 |
30 |
| ESL-12 x 1600 |
2-12 |
900-1600 |
5-30 |
20-50 |
30 |
